Description

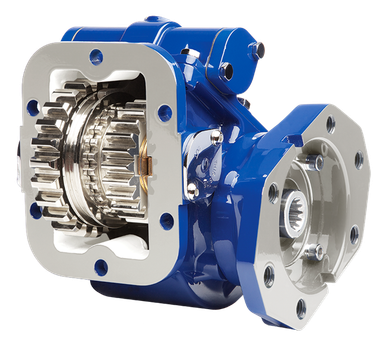

The Muncie TG6N-S7109-E3KX or TG6NS7109E3KX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The TG Series is Muncie’s most widely used PTO line, built for versatility across vocational applications. The die-cast aluminum housing reduces noise and improves heat dissipation, while the constant mesh input gear isolates the transmission from engagement errors during shifting. Rotatable hydraulic flanges give you maximum pump clearance, and the extra-large shift cover opening makes backlash checks fast and straightforward. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off, 6-bolt housing, mechanical shift
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Modular design simplifies field repair and parts replacement
Tech Specs
- Series: TG6
- Housing: 6-bolt, die-cast aluminum
- Shift type: Mechanical
- Dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
- Part number: TG6N-S7109-E3KX or TG6NS7109E3KX
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP at 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) at 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings shown are TG Series family ratings across available speed ratios. Confirm the specific ratio and output configuration for this part number before specifying torque or horsepower requirements. Call Pro Gear and Transmission if you need help matching this PTO to your application.
