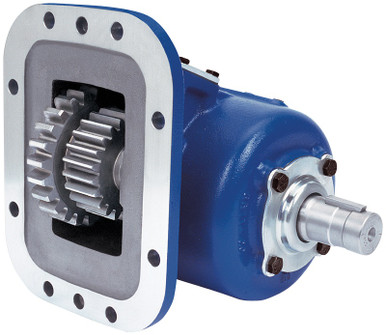

Description
The Muncie SH8D-S6809-A1KX or SH8DS6809A1KX is an SH8 Series air-shift power take-off built for high-torque applications. The integral air shift design eliminates the exposed air cylinder, keeping the installation clean and reducing potential snag points. The 8-bolt cast iron housing mounts securely and holds up under demanding duty cycles. With 17 input gear sets available across the SH series, this PTO covers most popular transmission configurations, while 12 output shaft options accommodate a wide range of pump types. Five speed ratios let you match output to the hydraulic system requirements. Call us to confirm the right configuration for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, high-strength mounting
5 speed ratios to match output to hydraulic system demands
12 output shaft options to fit most popular pump types
17 input gear sets covering most popular transmission applications
Air-shift only operation designed for high-torque duty cycles
Tech Specs
- Series: SH8 Series
- Shift Type: Air shift only
- Housing: 8-bolt cast iron
- Speed Ratios: 5
- Output Shaft Options: 12
- Input Gear Sets: 17
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
