Description

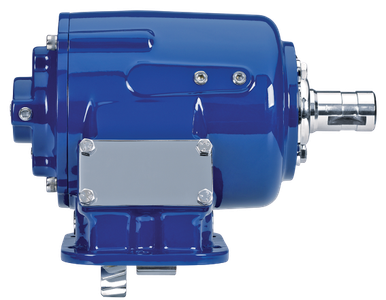

The Muncie SH6S-U6807-A3BP or SH6SU6807A3BP is a 6-bolt, air-shift-only power take-off from Muncie’s SH6 Series, engineered to bridge the gap between the TG and 82 Series for high-torque truck applications. The integral air shift design keeps the air cylinder fully enclosed, eliminating exposed hardware. Five available speed ratios cover a broad range of output requirements, with intermittent torque ratings reaching 400 ft-lb (542 Nm) at the 05 and 07 speed ratios. The cast iron 6-bolt housing mounts securely to most popular transmissions, supported by 17 input gear set options. Twelve output shaft configurations mean compatibility with a wide range of pump types. Call us to confirm proper fit for your transmission and application.
Features
Air-shift-only design with fully enclosed integral air cylinder, no exposed components
6-bolt cast iron housing for secure, high-strength mounting
17 input gear set options fit most popular transmissions
12 output shaft configurations for compatibility with most pump types
5 speed ratios available; intermittent torque ratings from 325 to 400 ft-lb (441 to 542 Nm) depending on ratio
Positioned between the Muncie TG and 82 Series for demanding, high-torque service
