Description

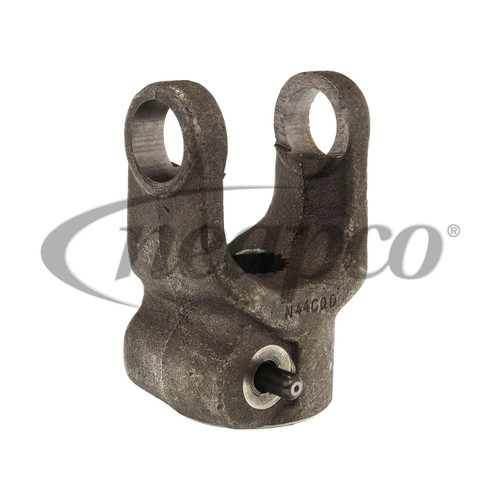

Neapco 44-2201 1 3/8″ 6 Spline Yoke
442201
Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers
44-2201
DL SERIES:44R N44
BORE TYPE:SPLINE
BORE DIAMETER:1.375″
CENTER LINE TO END OF HUB:1.875″
HUB DIAMETER:
KEYWAY LOCATION:
KEYWAY WIDTH:
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:
SET SCREW HOLE SIZE:
Set Screw Location:
SPLINE /NO TEETH:6
FITS TUBING:
Notes:USE PIN REPAIR KIT 56-1857
Cross References:
Precision:1453, G&G Manufacturing Co:182-4421, Rockwell International:44RYS22-21A, Woods:32429, Parts Master:21336, Weasler:102-4421
