Description
Product Info:-

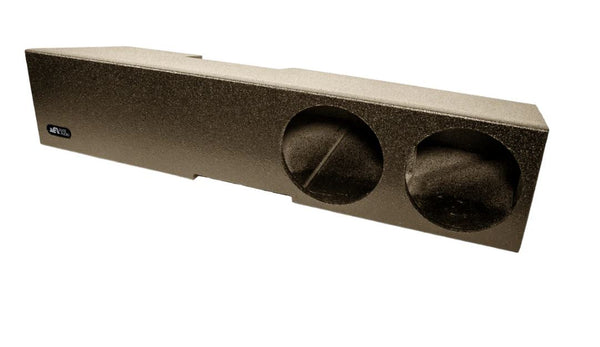

Elite Audio Dual 10” Ported Front Fire, Down Fire and Up Fire Enclosures for 2019+ GM Crew Cabs. Available in Kicker and JLTW3 Subwoofer specific options. Each Elite Audio box is coated with a durable bed liner polymer spray to enhance its longevity. These USA-made enclosures are constructed from high-grade, full 3/4″ MDF, ensuring robustness and exceptional sound quality.
EAG-P210PG5CF Dimensions: Width: 49″, Front Height: 11″, Rear Height: 7″, Height: 11″, Bottom Depth: 17″, Top Depth: 17″, Depth: 17″, Mounting Depth: 7″, Cutout Diameter: 9.25″, Weight: 46 LBS, Air Space per Cubic Foot: 2.9, Tuning Frequency: 32Hz
EAG-P210PG5CU Dimensions: Width: 52.25″, Front Height: 10.25″, Rear Height: 6.5″, Height: 10.5″, Bottom Depth: 17″, Top Depth: 17″, Depth: 17″, Mounting Depth: 8″, Cutout Diameter: 9.25″, Weight: 50 LBS, Air Space per Cubic Foot: 1 Per Chamber, Tuning Frequency: 40Hz
EAG-P210PG5CUK Dimensions: Width: 52.25″, Front Height: 10.25″, Rear Height: 6.5″, Height: 10.5″, Bottom Depth: 17″, Top Depth: 17″, Depth: 17″, Mounting Depth: 8″, Cutout Diameter: 9.25″, Weight: 50 LBS, Air Space per Cubic Foot: 2.87, Tuning Frequency: 34Hz
EAG-P210PG5C Dimensions: Width: 49″, Front Height: 10.5″, Rear Height: 6.5″, Height: 10.5″, Bottom Depth: 15.5″, Top Depth: 15.5″, Depth: 15.5″, Mounting Depth: 7″, Cutout Diameter: 9.25″, Weight: 41 LBS, Air Space per Cubic Foot: 2.69, Tuning Frequency: 30Hz
EAG-P210PG5CJ Dimensions: Width: 47.5″, Front Height: 10.25″, Rear Height: 6.25″, Height: 10.25″, Bottom Depth: 15.375″, Top Depth: 15.375″, Depth: 15.375″, Mounting Depth: 5.75″, Cutout Diameter: 9.625″, Weight: 45 LBS, Air Space per Cubic Foot: 1.5, Tuning Frequency: 40Hz
DISCLAIMER: All Elite Audio Enclosures are custom-made. Enclosure orders cannot be discounted, canceled, or modified once placed. ALL SALES ARE FINAL. Please double-check dimensions to ensure fitment for your vehicle and subwoofers before purchasing. You have 30 days to claim any shipping damages. Subwoofers not included.
| Specification | EAG-P210SG5C (Front Fire) | EAG-P210SG5CJ (Down Fire) | EAG-P210SG5CK (Up Fire) |
|---|---|---|---|
| Width | 49″ | 49″ | 49″ |
| Front Height | 10.5″ | 11″ | 11″ |
| Rear Height | 6.5″ | 7″ | 7″ |
| Total Height | 10.5″ | 11″ | 11″ |
| Bottom Depth | 15.5″ | 17″ | 17″ |
| Top Depth | 15.5″ | 17″ | 17″ |
| Overall Depth | 15.5″ | 17″ | 17″ |
| Mounting Depth | 7″ | 7″ | 7″ |
| Cutout Diameter | 9.25″ | 9.625″ | 9.25″ |
| Weight | 41 LBS | 43 LBS | 43 LBS |
| Air Space (Per Chamber) | 0.9 ft³ | 0.9 ft³ | 0.9 ft³ |
| Tuning Frequency | N/A | N/A | N/A |
| UPC | N/A | N/A | N/A |
