Description

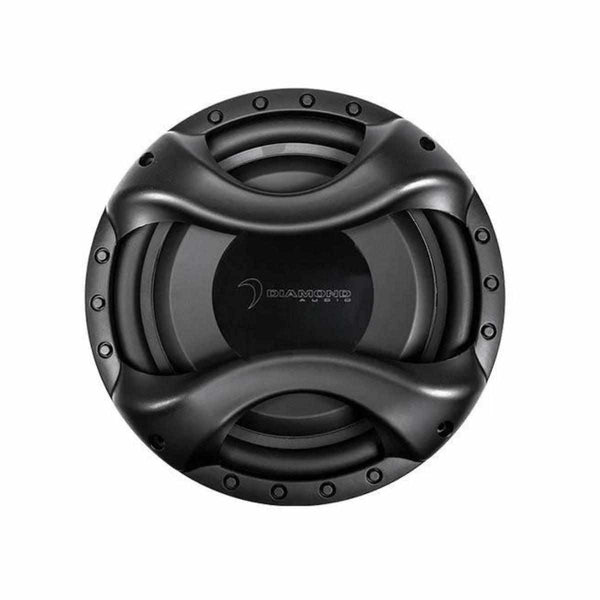

DMD122SH – DMD Series 12″ Shallow Dual Voice Coil Subwoofer (2Ω)
Look no further if you are seeking a solution when challenged with space limitations for adding bass to your car audio system. The Diamond DMD shallow series subwoofers measure in with only 3 inches of depth and perform best in sealed enclosures performing just like a conventional full-size subwoofer but taking up less space. For optimum bass response, we recommend using two DMD shallow subwoofers in a narrow 1 cubic foot enclosure. Extremely shallow mounting depth of 3 inches.
Specifications:
- Power: 300W RMS/600W MAX
- SPL(dB): 87.5
- Re(Ω): 3.40
- Qms: 9.0
- Qes: 0.84
- Qts: 0.77
- Fs(Hz): 46.0
- Vas(L): 30.7
- Cms(mm/N): 0.074
- Mms(g): 161.0
- Sd(cm²): 0.0539
- BL(T*M): 13.7
- Xmax(mm): 7.9
Extra Information
Brand:Diamond AudioWeight:10.00 LBSUPC:847169035111Bundle:NoCondition:NEWWeight:10.0000 lbsASIN:B0BPN2CJG3Feature 1:The DMD122SH features a shallow design with only 3 inches of mounting depth, making it perfect for compact installations in various vehicles.Feature 2:This subwoofer is ideal for sealed enclosures, maximizing bass output while fitting into tight spaces.Feature 3:With a dual voice coil configuration, it offers enhanced flexibility in wiring and setup options.Feature 4:It handles power up to 300W RMS and 600W MAX, ensuring robust bass performance for audio enthusiasts.Feature 5:The subwoofer boasts a sensitivity of 87.5 dB and an impedance of 2Ω, delivering exceptional sound quality when paired with another DMD shallow sub.RMS Wattage Per Speaker:300
