Description

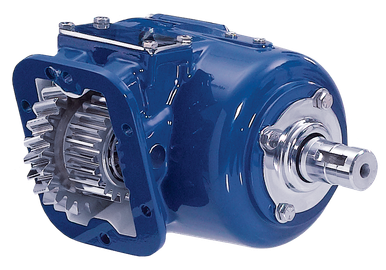

The Muncie CS6 Series Power Take-Off, part number CS6S-U6005-E1BX or CS6SU6005E1BX, is a 6-bolt clutch shift PTO designed for a wide range of automatic and manual transmission applications, including the Allison 1000/2000 series. The CS6 Series accommodates SAE “A”, “B”, and “BB” and DIN 5462 direct mount pump flanges, with rotatable flange positioning for clearance in tight installations. Three remote mount output shaft options are available in keyed and flange types. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. Overall dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. A genuine Muncie part, available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
CS6 Series PTO with 6-bolt clutch shift engagement
Fits Allison 1000/2000 series and many popular manual transmissions
SAE “A”, “B”, “BB” and DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for maximum pump clearance in the application
Muncie patented drag brake prevents output shaft rotation in OFF mode
Optional pulse generator available for PTO shaft speed monitoring
Tech Specs
- Part Number: CS6S-U6005-E1BX or CS6SU6005E1BX
- Series: Muncie CS6
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462
- Output Shafts: Three remote mount options in keyed and flange types
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Common Transmission Fit: Allison 1000/2000 series and many manual transmissions
