Description

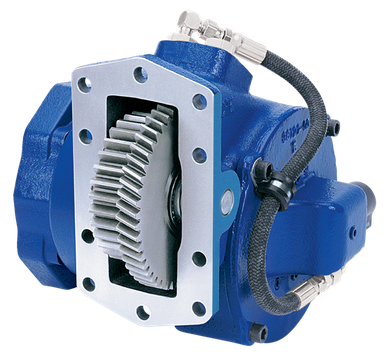

The Muncie CS10-A1008-H1DB or CS10A1008H1DB is a 10-bolt heavy-duty clutch shift power take-off from the CS10 Series, built for demanding hydraulic pump drive applications. It features standard pressure lubrication at no added cost and two assembly arrangements that allow mounting shaft-high or shaft-low on either side of the transmission. Direct mount flanges are rotatable for maximum pump clearance, and the patented Muncie drag brake prevents output shaft rotation when the PTO is disengaged. Three remote mount output shaft options are available in both keyed and flange configurations. Direct mount pump pads cover SAE “B”, “BB”, and “C” as well as DIN 5462 patterns to suit most popular hydraulic pumps. Call us to confirm proper fit for your transmission and application.
Features
10-bolt heavy-duty clutch shift design
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Rotatable direct mount flanges for SAE “B”, “BB”, “C”, and DIN 5462 pump pads
Three remote mount output shaft options in keyed and flange types
Two assembly arrangements: shaft-high or shaft-low mounting on either side of the transmission
Standard pressure lubrication included
