Description

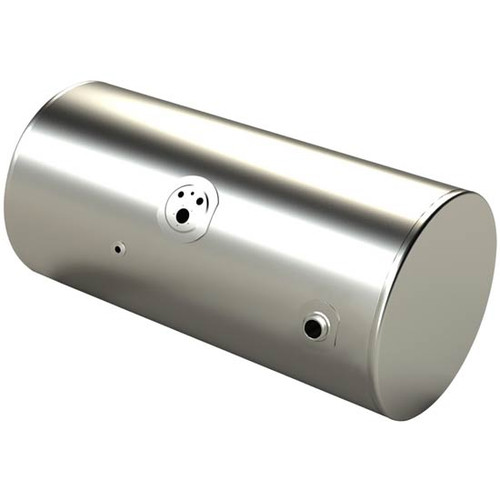

This BestFit Fuel Tank is tailored for 2008 and newer Kenworth trucks, boasting a U.S. gallon capacity of 150. It features a diameter of 24.5 inches, a seam-to-seam length of 72 inches, and an overall length of 74 inches. The filler neck is positioned 4.00 inches from the rear weld seam, extending 38.62 inches above the horizontal weld seam at the back of the tank. The manifold, equipped with a sending unit hole, is situated 49.50 inches from the front weld seam and stands 30.62 inches above the horizontal weld seam at the back. Drains or crossovers are located 49.50 inches from the front weld seam, descending 3.75 inches below the horizontal weld seam at the back of the tank. Caps and fittings are available separately, not included with the tank. The tank comes with removable pickup and return tubes, which must be cut to length. It is sold individually and manufactured in North America. Ensure compatibility with manifold style, dimensions, filler, and fittings before purchasing, as there may be multiple options for your specific year, make, and model. This is an aftermarket replacement part and not OEM.
– For 2008 And Newer Kenworths
– Gallons U.S. – 150
– Diameter – 24.5 Inches
– Length Seam To Seam – 72 Inches
– Length Over All – 74 Inches
– Filler Neck – Rear Fill
– 4.00 Inches From Rear Weld Seam
– 38.62 Inches Above Horizontal Weld Seam – Back Of Tank
– Manifold With Sending Unit Hole
– 49.50 Inches From Front Weld Seam
– 30.62 Inches Above Horizontal Weld Seam – Back Of Tank
– Drains Or Cross Overs
– 49.50 Inches From Front Weld Seam
– 3.75 Inches Below Horizontal Weld Seam – Back Of Tank
– Caps And Fittings Sold Separately, Not Included With Tank
– Removable Pickup And Return Tubes Included With Tank
– Pickup And Return Tube Must Be Cut To Length
– Sold Individually
– Made In North America
Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model
Aftermarket Replacement Part (Not OEM)
Fitment
* Fits Kenworth T660 2008 thru 2017
