Description

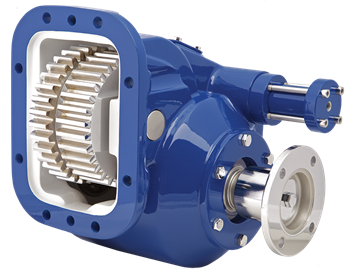

The Muncie 828S-U6812-D1EG or 828SU6812D1EG is a heavy-duty power take-off from Muncie’s 82 Series line, engineered for high-torque applications including high-volume pumps and high-CFM blowers. The 82 Series features a cast iron housing and a double-acting air shift mechanism for positive engagement and disengagement. The series supports up to 500 lb.ft. of intermittent torque and 95 HP at 1,000 RPM, with continuous torque ratings available depending on speed ratio. Output and mounting options across the series include multiple SAE and DIN 5462 flange configurations with rotatable direct-mount pump flanges for maximum clearance. Call us to confirm proper fit and configuration for your transmission and application.
Features
Muncie 82 Series heavy-duty power take-off
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
82 Series rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM
Rotatable direct-mount pump flange for positioning flexibility
Compatible with SAE B, BB, C, D and DIN 5462 mount configurations
