Description

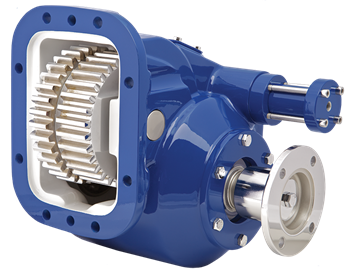

The Muncie 828S-M6510-R3PX or 828SM6510R3PX is an 82 Series Power Take-Off built for heavy-duty applications requiring high torque output. This unit features an 8-bolt, heavy-duty mechanical shift configuration and a cast iron housing. At speed ratio 05, the series delivers up to 95 H.P. and 500 lb.ft. intermittent torque at 1,000 RPM, with 350 lb.ft. continuous torque, making it well suited for high-volume hydraulic pumps and high-CFM blowers. Direct mount flange options cover SAE “B,” “BB,” “C,” “D,” and DIN 5462 patterns, and rotatable pump flanges allow positioning for clearance. Eight speed ratios and nine output shaft options are available across the 82 Series. Call us to confirm the right configuration for your application.
Features
8-bolt heavy-duty mechanical shift configuration
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Seven direct mount pump flange options: SAE “B,” “BB,” “C,” “D,” and DIN 5462
Rotatable direct mount flanges for maximum pump clearance
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Shift Type: 8-bolt heavy-duty mechanical shift
- Housing: Cast iron
- Speed Ratios Available (82 Series): 8
- Output Shaft Options (82 Series): 9
- Assembly Arrangements: 2
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Direct Mount Flange Options: SAE B, BB, C, D; DIN 5462
- Rotatable Pump Flange: Standard
