Description

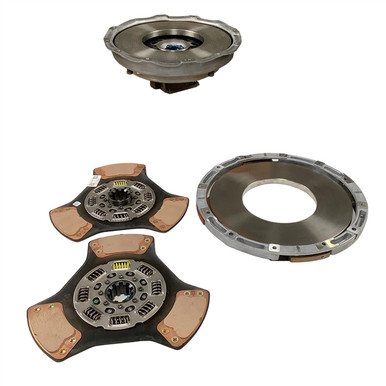

The Eaton Install Clutch Assembly, part number 109504-12 or 10950412, is a medium-duty Solo clutch designed for vehicle drivetrain applications. This assembly features a standard stroke with 0.500 in. to 0.560 in. bearing travel and a 2.0 in.-10 spline configuration. It is sold individually and cross-references to part numbers CL107442-12 and C10950412, among others. Pro Gear and Transmission carries genuine Eaton clutch components for heavy- and medium-duty drivetrain work. Call us to confirm proper fit for your specific application before ordering.
Features
Medium-duty Solo clutch assembly for vehicle drivetrain applications
Standard stroke with 0.500 in. to 0.560 in. bearing travel
2.0 in.-10 spline configuration
Sold as an individual unit (each)
Cross-references: CL107442-12, C10950412, 10950412-SP
Genuine Eaton part available from Pro Gear and Transmission
Tech Specs
- Type: Medium-Duty Solo Clutch Assembly
- Stroke: Standard
- Bearing Travel: 0.500 in. to 0.560 in.
- Spline: 2.0 in.-10 spline
- Cross References: 109504 12, 10950412, 10950412-SP, C10950412, CL107442-12
- Unit of Measure: Each
